Webhooks

A webhook is a URL on your backend that Kite sends events to: every transfer status change, deposit, recovery and excess refund in an app.

Adding a webhook

Inside an app, open Webhooks and click New webhook. Give it a label and your endpoint’s URL, choose which events it gets, and how hard to retry.

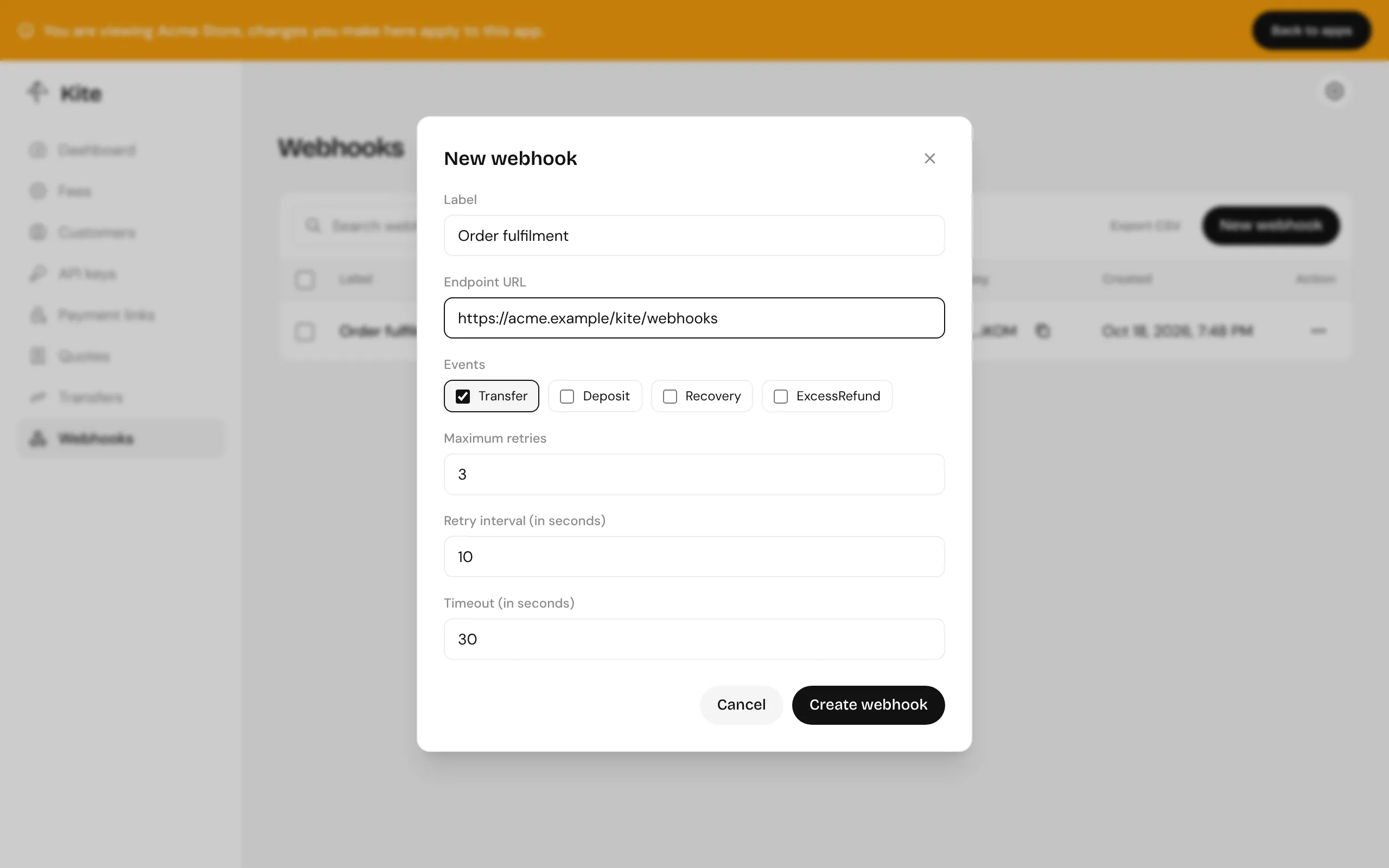

Adding a webhook: label, endpoint URL, events and retries

Copy the signing key it shows: you need it to verify deliveries, and it’s shown once.

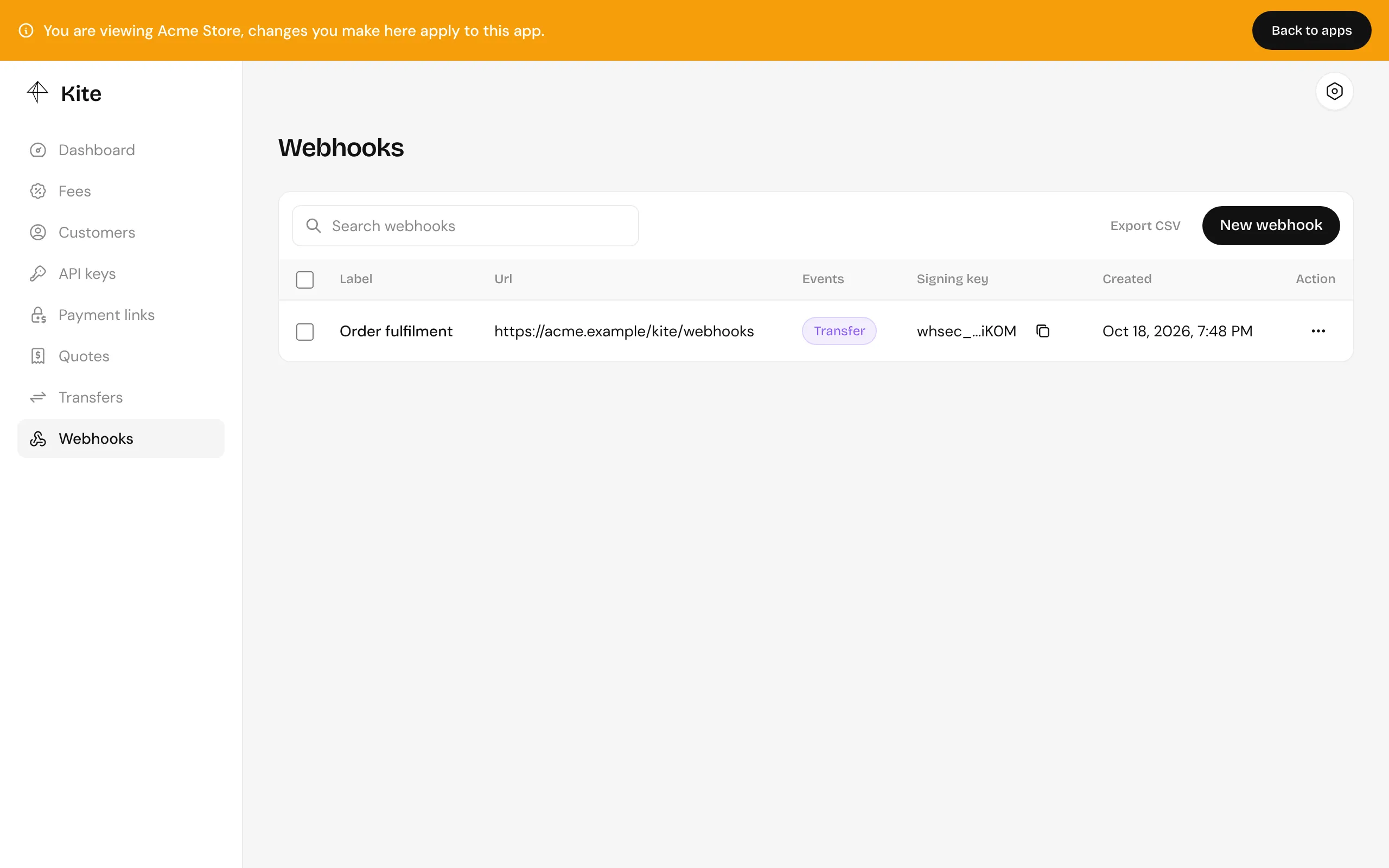

The Webhooks page, with each webhook’s events and deliveries

What’s sent

Each delivery is a POST with a JSON body:

{
  "id": "4f1c…",
  "eventId": "9b2e…",
  "webhookId": "71d0…",
  "category": "Transfer",
  "previous": { "status": "Processing" },
  "current": { "status": "Settled" },
  "data": {
    "id": "7f3c2a10-…",
    "status": "Settled",
    "payinAddress": "0x…",
    "settlementBlockchainHash": "0x…",
    "quote": {
      "sourceAmount": "49000000",
      "sourceToken": { "symbol": "USDC", "decimals": 6 },
      "customer": null,
      "paymentLink": {
        "id": "d097df9a-…",
        "title": "Pro plan",
        "reference": "order-2041",
        "meta": null
      }
    }
  }
}

Field	Description
`id`	This delivery. Each retry has a new one.
`eventId`	The event. The same across retries: use it to ignore repeats.
`category`	`Transfer`, `Deposit`, `Recovery` or `ExcessRefund`.
`previous`, `current`	The status before and after.
`data`	For transfers, the transfer with its quote, the quote’s tokens, customer and payment link.

And these headers:

Header	Value
`X-Kite-Signature`	Hex HMAC-SHA256 of `t=<timestamp>&<raw body>`, keyed with the signing key.
`X-Kite-Timestamp`	Unix seconds when it was sent.
`X-Kite-Event-Id`	The event’s ID.

Verifying with the SDK

Pass the body exactly as it arrived, before any JSON parsing:

Express
Fetch handlers

import express from "express";
import { verifyWebhook } from "@kite-01/sdk";

app.post(
"/kite/webhooks",
express.raw({ type: "application/json" }),
async (req, res) => {
const event = await verifyWebhook({
body: req.body,
headers: req.headers,
secret: process.env.KITE_WEBHOOK_SECRET!,
});

    if (event.category === "Transfer" && event.current.status === "Settled") {
      const transfer = event.data as {
        quote: { paymentLink: { reference: string | null } | null };
      };
      await fulfil(transfer.quote.paymentLink?.reference);
    }

    res.sendStatus(200);

},
);

import { verifyWebhook } from "@kite-01/sdk";

export const POST = async (request: Request) => {
  const event = await verifyWebhook({
    body: await request.text(),
    headers: request.headers,
    secret: process.env.KITE_WEBHOOK_SECRET!,
  });

  // handle event…
  return new Response(null, { status: 200 });
};

verifyWebhook throws a WebhookVerificationError when the signature doesn’t match or the delivery is more than 5 minutes old (tolerance changes that). Answer with a 4xx then.

Verifying without the SDK

import hashlib, hmac, time

def verify(body: bytes, signature: str, timestamp: str, secret: str) -> bool:
    if abs(time.time() - int(timestamp)) > 300:
        return False
    expected = hmac.new(
        secret.encode(), f"t={timestamp}&".encode() + body, hashlib.sha256
    ).hexdigest()
    return hmac.compare_digest(expected, signature)

Retries

Answer with any 2xx within the webhook’s timeout to acknowledge a delivery. Anything else is retried, up to the webhook’s maximum retries, with its retry interval between attempts. Every attempt, with the response your endpoint gave, is listed under the webhook in the dashboard.
